Secure Your Wires with Confidence

Share

Monday, 17 April, 2023


Panduit provides adhesive backed mounts that offer a reliable and efficient way to secure, route, and safeguard wires and cables with high performance. These mounts come with an adhesive backing that makes installation quick and hassle-free and serves as an alternative to mechanical fasteners. By choosing PANDUIT Adhesive Backed Mounts and devices, you can benefit from their low installed cost and exceptional dependability, provided they are installed properly.

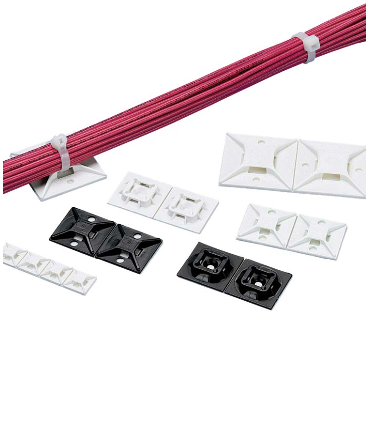

PANDUIT® Adhesive Backed Mounts and Devices Features and Benefits

■ Superior adhesive for long term reliability

■ 2-up mount configuration speeds liner removal and installation

■ 4-way cable tie entry makes part orientation fast and easy

■ Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled

■ Mount sizes range from .50" x .50" to 2.00" x 2.00" to accommodate  space limited or heavy load applications

■ Select Mounts, Clamps and Clips are UL Recognized

■ Used with PANDUIT® cable ties for a complete wire routing solution

■ One piece solutions lower inventory costs and speed installation

■ Cable tie entry ramps guide the cable tie into the mount

■ Bevel entry on wire clips speeds installation

■ Releasable latches allow addition or removal of cables


Selection of Adhesive

When selecting adhesive, there are four types of adhesive systems to choose from: Rubber-based, Acrylic-based, High Bond Acrylic-based Adhesive Foam Tape, or Two-part Epoxy Adhesive. It is important to choose the correct adhesive and closely follow the recommended installation steps to ensure a reliable, long-term bond.


Rubber-Based Adhesive Foam Tape is the most widely used and generally recommended foam tape for wire routing applications. It is suitable for indoor use applications, but it has a temperature performance tolerance range of -20° F to 120° F (-29° C to 49° C). It is recommended that rubber-based adhesive mounts dwell two (2) hours after installation prior to loading.


Acrylic-Based Adhesive Foam Tape is a good choice for applications with prolonged exposure to UV rays or heavy moisture. It has a temperature performance tolerance range of -20° F to 180° F (-29° C to 82° C), and it is suitable for both indoor and outdoor applications. The acrylic-based adhesive develops its maximum strength over a longer period compared to the rubber-based adhesive. It is recommended that the mounts dwell eight (8) hours after installation prior to loading.


High Bond Acrylic-Based Adhesive Foam Tape is for applications with prolonged exposure to UV rays or heavy moisture and where additional tack strength is needed. It has a temperature performance tolerance range of -31 F to 200 F (-35 C to 93 C) and develops its maximum strength over a longer period compared to the rubber-based adhesive. It is recommended that the mounts dwell eight (8) hours after installation prior to loading. This type of adhesive is suitable for applications where wire routing is subjected to higher dynamic loads, such as those routed inside control panel access doors.


Lastly, Two-Part Epoxy Adhesive is specifically formulated for use on PANDUIT® EMS and ASMS mounts in either indoor or outdoor applications. It is best used in applications where excessive loading is required or where the mounting surface is porous rather than smooth. It is packaged in convenient pre-measured cups to ensure the proper ratio of resin and hardener and eliminate waste.


Guideline for Adhesive

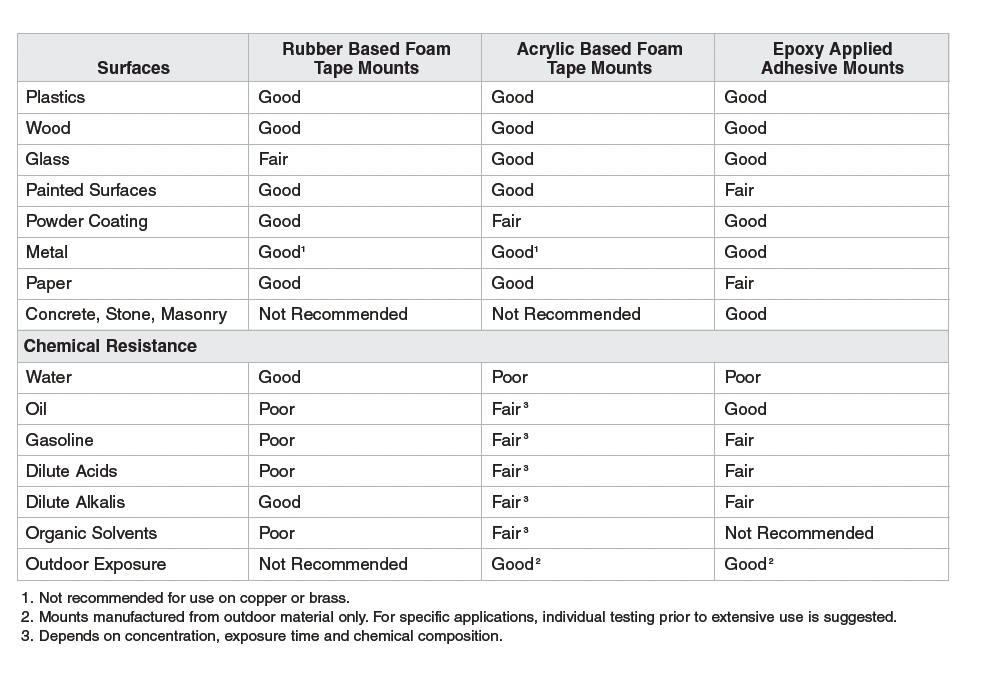

The following chart should be used as a guideline for choosing the best adhesive for common surfaces and chemical resistance. Since each application has specific requirements, PANDUIT recommends that further testing be conducted to determine the suitability of the adhesive in a specific environment or application.


Experience the reliable performance of Panduit's adhesive backed mounts and devices for securing, routing, and protecting cable wires. Contact IBS Electronics today to learn more about how Panduit's products can benefit your business. Don't miss out on the opportunity to improve your wire and cable management with Panduit's high-performance solutions.
