Amtek BTB08FE 38/78-XX-U

Share

Wednesday, 4 May, 2016

Amtek | BTB08FE


Amtek BTB08FE 38/78-XX-U female board-to-board connector.

Specifications

38/78-XX-U Board to Board Female 0.8mm H=3.75/7.75mm


Current Rate:0.5 AMP
Insulation Resistance:100M ohm. Min.
Contact Resistance:70m ohm. Max.
Delectric Voltage:200V AC for 1 Min.
Operation Temperature:-20°C to +105°C

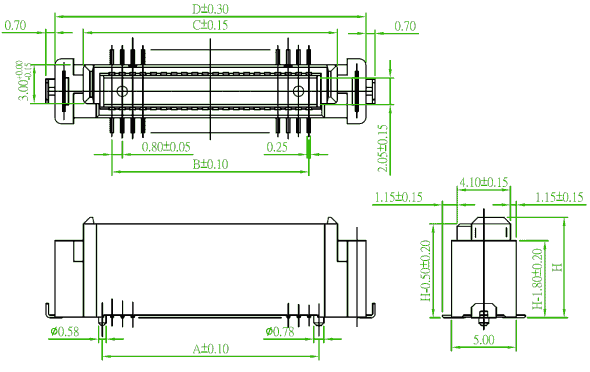

Amtek BTB08FE 38/78-XX-U technical drawing and dimensions.


Data Sheet: Amtek BTB08FE 38 78-XX-U
